Dry Product Vibratory weigh filling machines
This automatic single-head vibratory weigh filling machine is set up to fill a variety of spices into different size jars. This type of weigh filling machine fills free flowing products, food and granular products into a variety of bottles and can be set up to fill bags.
We offer a range of machines that will fill chips and other irregularly shaped products into bags, bottles, boxes, and other containers.
- The Hanging Scale Single Head Filler is our most popular vibratory filler.
- It is capable of filling free flowing products from coffee beans and ground, nuts, seeds, powdered soaps to chenicals.
- Will fill from about 2 ouces to 10 pounds in one fill.
-------------------------------------------------------------------------------
The Standard Weigh Filler fills one gram to 50 pounds while the bag or container is sitting on the scale. Fills free flowing products.
-------------------------------------------------------------------------------
The Cascading Scale System fills hard to fill products like crackers, chips, and parts into bags boxes or other containers.
----------------------------------------------------------------------------------
The Dual Hanging Scale System is faster then the Hanging Scale Single Head FIller. FIlling about twice as fast and can be used to mix two products going into one container.
-------------------------------------------------------------------------------------
The Single and Dual Head Hanging Scale Weigh Fillers can be set up and automated with a conveyor and indexing system.
Please contact us for details.
336-683-9834

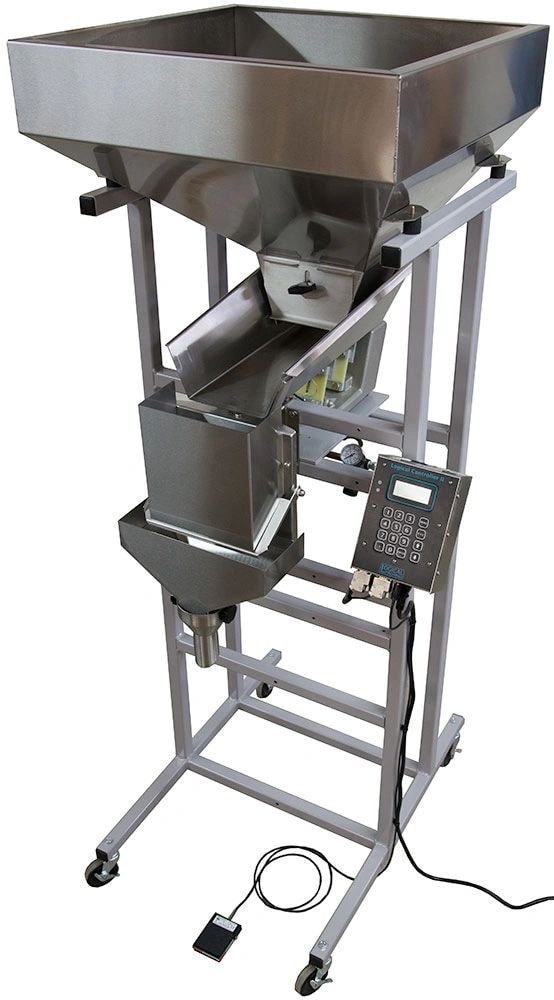

This Semi-automatic vibratory hanging scale filler for dry products is great first step to take your business from to hand scooping to automation.
Your bulk product is placed in the supply hopper at the top of the machine. An electromagnetic vibratory feeder is usedto move the product from the supply hopper to the weigh hopper where it is weighed. When the target weight is reached, the Controller stops the feeder, and the weigh hopper opens automatically or with the foot switch to dump your product into your container. A new fill cycle is started and your filled container may now be sealed.
The Standard Hanging Scale Filler includes:
- Self-adjusting controller
- Reads out to 0.10 gram or .001 lb
- Controller range up to 75lbs.
- Supply Hopper cap. 3.5 cu.ft. (equivalent to 5 five-gallon pails)
- IStandard chassis is:
- Powder Coated
- Footprint 4.6 sq.ft., 68" high, 41.5" high Table Top model
- 4 locking casters
- All product contact surfaces 304 stainless steel
- 120V 60Hz (240V 50Hz option)
- Handles all dry bulk from powders to large parts
- Can be used with all bags and rigid containers
- Automatic tare adjustment
- On-the-fly, self-adjusting bulk & dribble speed control
- Up to 800 fills/hour

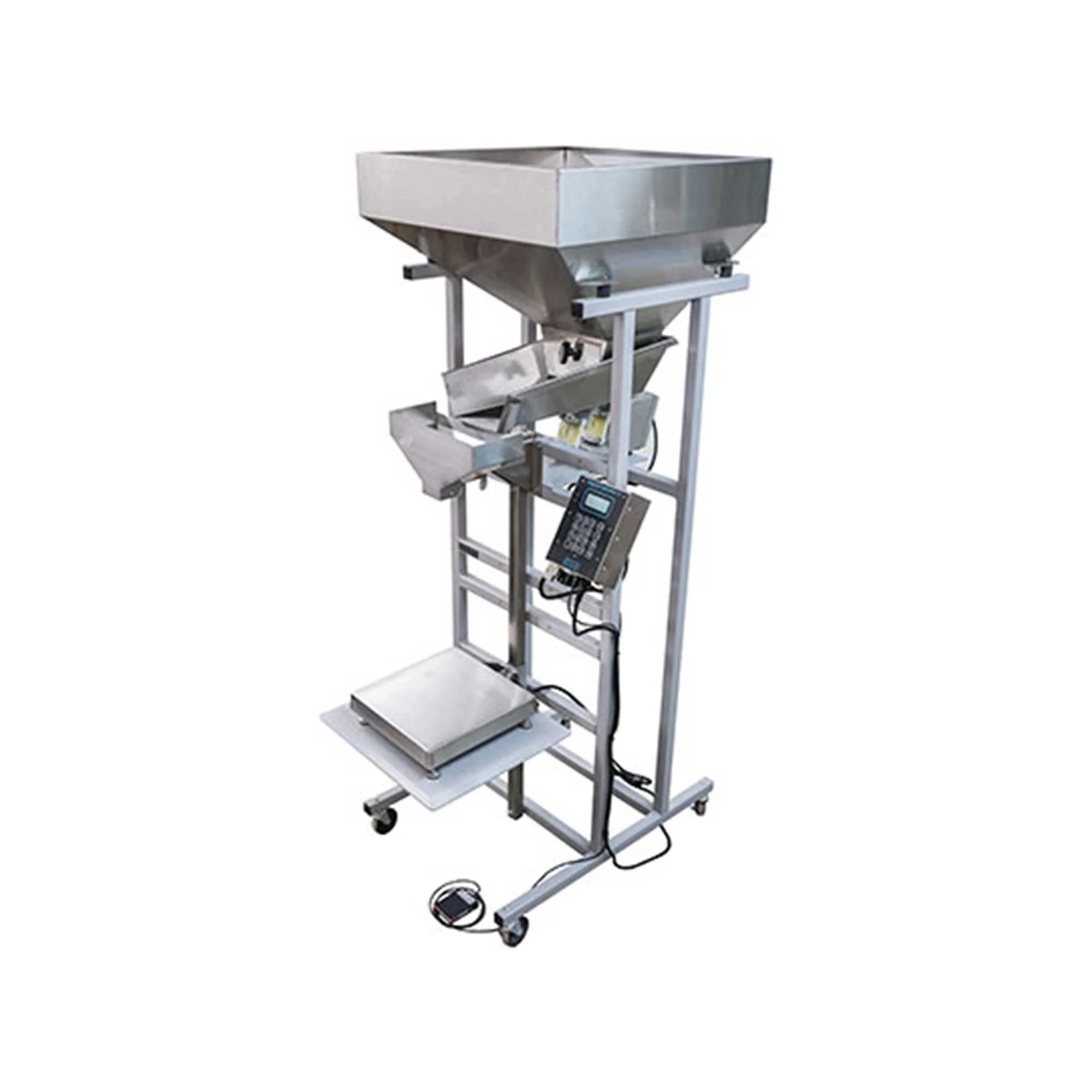

Vibratory weigh fillers fill the product right on the scale and it is accurate.
The machne will weigh up to 50 pounds of product into bags, boxes or other containers. accurately. It is adjustable to fill a variety of free flowing products.
The Standard Weigh Filler includes:
- Bulk filling for weights of up to 50lbs.
- Self-adjusting controller
- Controller Reads out to 0.10 gram or .001 lbs.
- Scale range from 1 gram up to 50lbs.,
- Supply Hopper capacity 3.5cu.ft. hopper (equivalent to 5 five-gallon pails)
- Includes Standard Chassis:
- Powder Coated
- Footprint 4.6 sq.ft., 68" high
- 4 locking casters
- Adjustable Table with a 23” range of height
- All product contact surfaces 304 stainless steel
- 120V 60Hz (240V 50Hz option)
- Handles all dry bulk products from powders to large parts
- Can be used with all bags or rigid containers
- Automatic tare adjustment
- On-the-fly, self-adjusting bulk & dribble speed control
- Up to 400 fills/hour
Information:
The very accurate and easy to operate semi-automatic scale has automatic tare, automatic feed and speed controls for both bulk and dribble feed rates, and automatic set points. The product flow from the hopper to the feed pan can also be controlled by an adjustable slide gate.
Example: To run a relatively free-flowing product into a 10lb. package, the product is loaded into the Supply Hopper, and the target weight is set at 10lb. The package is placed on top of the scale, and the table is adjusted (up/down) so that the funnel is inside the bag in order to keep the bag "standing" when empty. After starting the first fill cycle with the foot pedal, the controller will automatically switch into "learn mode" for the first cycle. During this time the controller tests the flow characteristics of the product and decides the best speeds and durations for bulk and dribble.The controller will automatically change the vibratory feed from bulk to dribble and stop the scale at 10lb.The bag is removed and sealed. Each successive container is now filled by placing it under the funnel and depressing the foot pedal.
All product contact surfaces are stainless steel and easily disassembled for dry wiped-down and cleaning.
Specifications:
- Overall height: 5'8" (68"), occupies only 24" x 30" of floor space
- Supply Hopper capacity: 3.5 cu.ft. (equivalent to 5 five-gallon pails)
- Table Size: 16" wide x 18" deep.
- Table height adjustable to accommodate containers from 3" to 36" high.
- Scale Total Weight: 140lbs.
- Power Requirement: 2 Amps, 110 Volts 60Hz AC
- Air Requirements (only if Dribble Feed Gate is installed): <0.25 cfm air supply at 30psi
- One year limited warranty

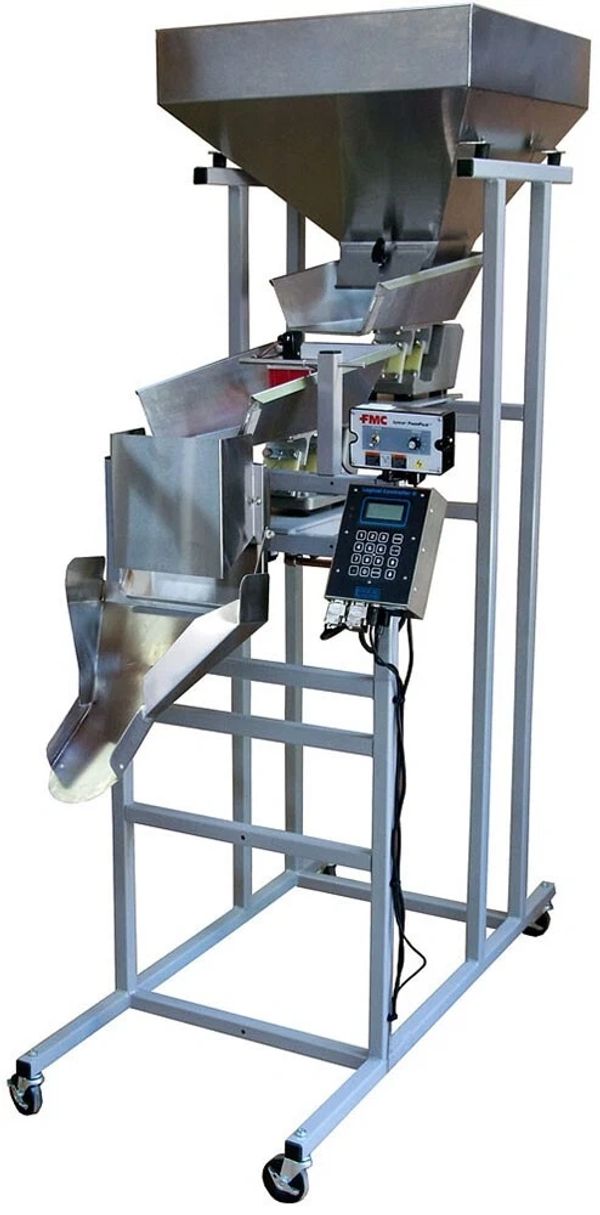

The cascading scale system is designed to fill products such as crackers, chips, and other non-free-flowing or irregularly shaped products. A very accurate and easy to use control system monitors the product depth in the lower pan allowing for consistent filling.
Cascading Semi-Automatic Vibratory Weigh Filler
The Standard cascading filler includes:
- Cascading feed pans
- Self-adjusting controller
- Reads out to 0.10 gram or .001 lbs.
- Controller range up to 75 lbs.
- Supply hopper 3.5 cu.ft. (equivalent to 5 five-gallon pails)
- All product surfaces 304 stainless steel
- Discharge Chute
- Includes Standard Chassis:
- Powder Coated
- Footprint 7.5 sq.ft., 74.5" high
- 4 locking casters
- 120V, 60Hz (240V, 50Hz option)
- Designed for difficult products of irregular shape
- Handles all dry bulk products from powders to large parts
- Compatible with all bags, rigid containers, bagging machines and conveyors
- Automatic tare adjustment
- On-the-fly, self-adjusting bulk & dribble speed control
- Up to 800 fills/hour
Information:
This cascading scale system is designed to fill harder to run products such as crackers, chips and other non-free-flowing or irregularly shaped products. A very accurate and easy to use control system monitors the product depth in the lower pan allowing for consistent filling.
Specifications:
- Overall height: 6'3" (75"), occupies only 24" x 48" of floor space
- Supply Hopper capacity: 3.5 cu.ft. (equivalent to 5 five-gallon pails)
- Scale Total Weight: 240 lbs.
- Power Requirement: 7 Amps, 120 Volts AC 60Hz
- Air Requirements: <0.25 cfm air supply at 30psi
- One year limited warranty
- The cascading filler requires a 4 to 6 week lead time

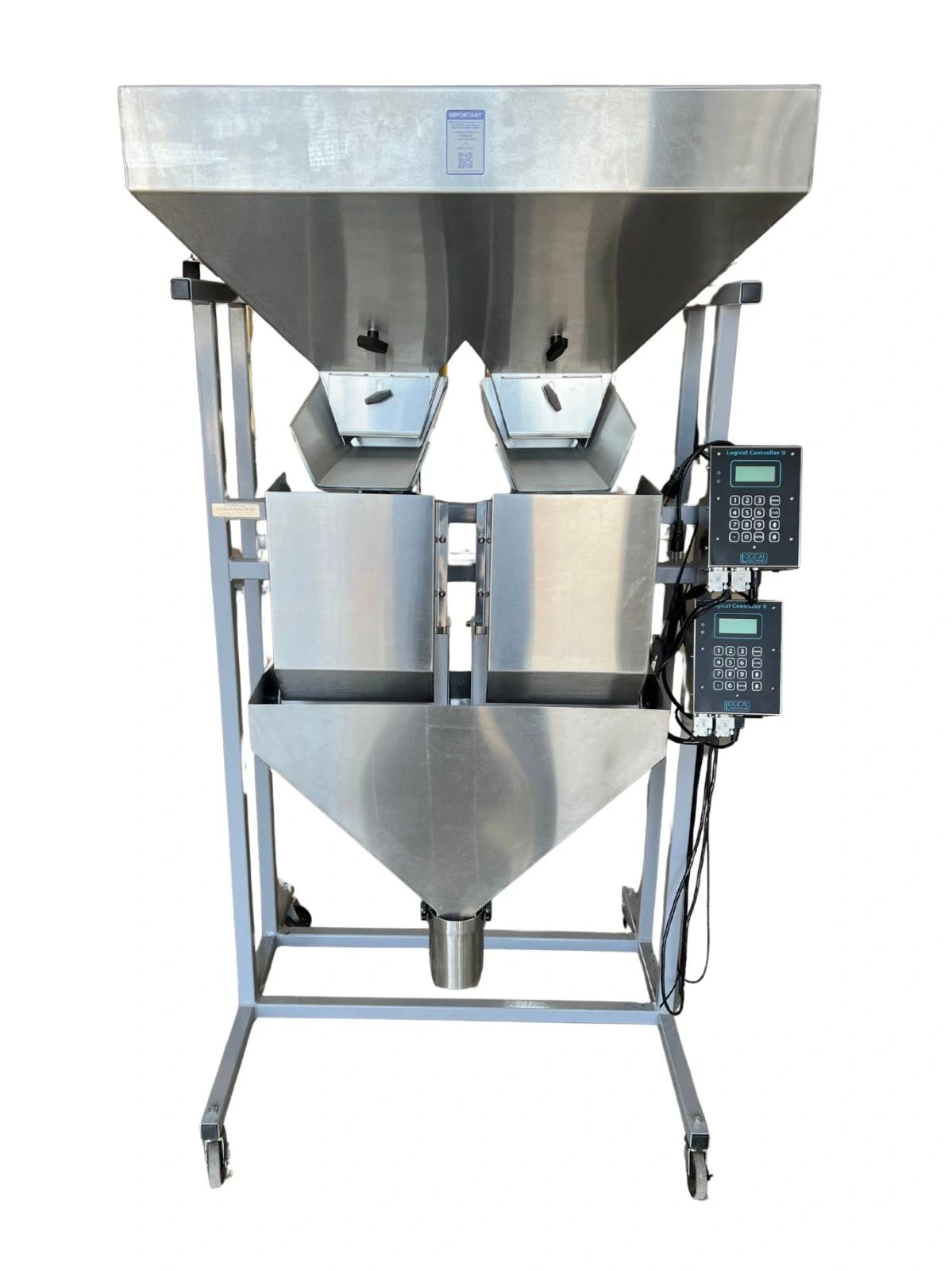

The Dual Lane Hanging Scale System shares many of the same basic characteristics of the hanging scale filler. A very accurate and easy-to-use Controller allows for three different modes of operation. In simultaneous dump the machine fills both weigh hoppers at the same time, allowing for twice as much product flow as the single hangng scale filler. In individual dump the machine dumps whichever weigh hopper is at weight first. This gives twice the speed of the single head machine. The system can be set to weigh two completely different products at different weights to easily mix products into one container.
Semi-Automatic 2 Scale System for Weighing Food and Free Flowing Products
The Standard 2 head filler includes:
- Two lanes for twice the speed
- Self-adjusting controller
- Reads out to 0.10 gram or .001 lbs.
- Controller range up to 75 lbs.
- 5.1 cu.ft. supply hopper (equivalent to 7 five-gallon pails)
- All product contact surfaces 304 stainless steel
- Includes Standard Chassis:
- Powder Coated
- Footprint 7.25 sq.ft., 68" high
- 4 locking casters
- 120V 60Hz (240V 50Hz option)
- Handles all dry bulk products from powders to large parts
- Compatible with all bags, rigid containers, and bagging machines
- Automatic tare adjustment
- On-the-fly, self-adjusting bulk & dribble speed control
- Up to 1500 fills/hour
Specifications:
- Overall height: 5'8" (68"), occupies only 30" x 35" of floor space
- Supply Hopper capacity: 5.1 cu.ft. (equivalent to 7 five-gallon pails)
- Scale Total Weight: 225 lbs.
- Standard Funnel discharge opening is 2.5"x2.5" square
- Power Requirements: 4 amps, 110 volts 60Hz AC
- Air Requirements: <1.0 cfm air supply at 30psi
- One year limited warranty
- 4 to 6 week lead time
