Feed and Accumulation Tables
Rotary Bottle Feed and Accumulation Turntables
Feed and accumulation turntables are used to load bottles onto a filling line conveyor and to accumulate bottles at the end of a line. Neumann Packaging offers rotary feed turntables and accumulation tables to keep your filling line running smoothly and efficiently.
Bottle Feed and Accumulation Turntables
A bottle feed turntable is placed at the beginning of a filling line to load bottles onto the conveyor and into the filling machine. The operator places bottles on the rotating turntable and the turntable feeds them onto the conveyor in a single file.
Feed turntables are available in a range of sizes to match your bottle size and production speed. They are adjustable and can be used with a variety of bottle shapes and sizes.
- Adjustable height 32 to 36"
- Robust design
- Easy to change over
- Flexible — can run a variety of round bottles and products
- 1/3 Horsepower variable speed DC drive motor
- Reversible
- Gearbox drive — no chains or belts
- Stainless steel frame (some exceptions)
- 4 stainless steel covers to cover motor, gearbox, and frame
- Stainless and poly rail mounted with brackets

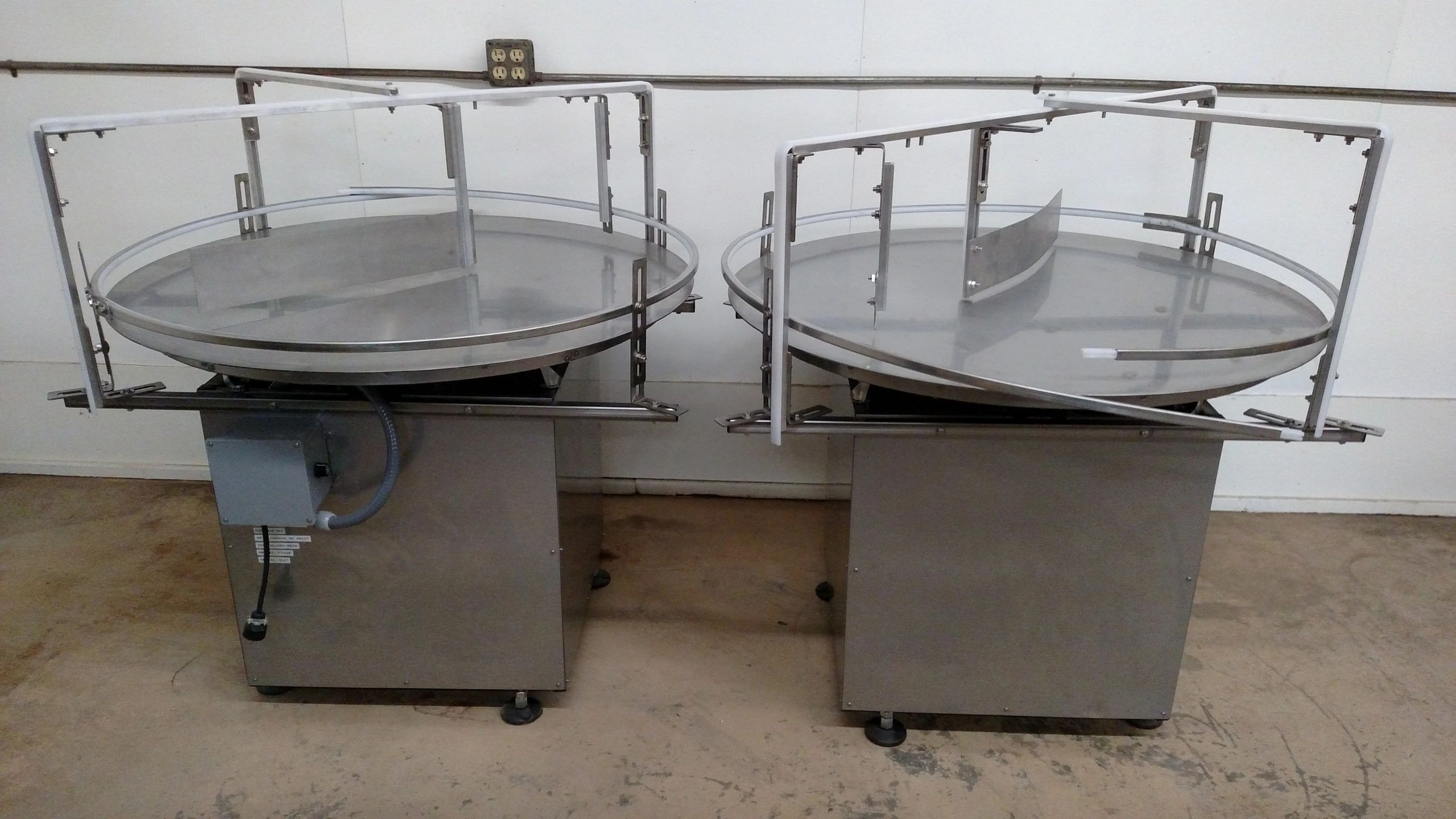

Stainless Steel Frames — Standard Turntable Sizes
Standard rotary bottle turntable sizes are available, and custom sizes can be built to fit your line layout. Different styles of rail are available. AC drives are an option.
- 18" diameter transfer turntable
- 36" diameter
- 42" diameter
- 48" diameter
- 59" diameter
- Custom sizes available

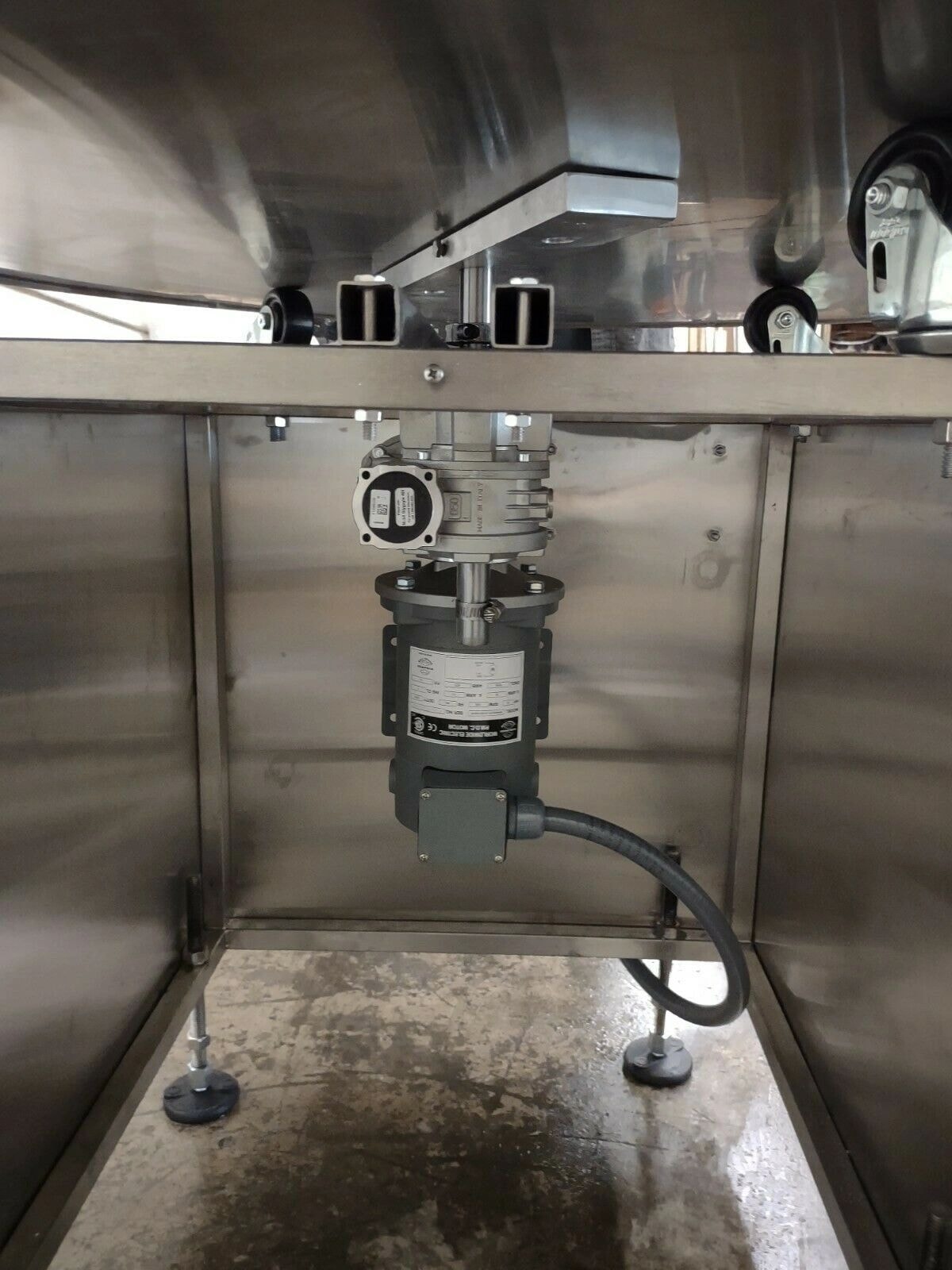

Heavy Duty Direct Drive — No Belts or Chains
Our turntables use a direct drive motor and gear reducer with no belts or chains to maintain. This makes the turntable easy to clean and maintain, and eliminates the need to replace belts or adjust chain tension.
The drive system is reliable and long-lasting, and is designed to run continuously in a production environment. Variable speed control allows the operator to match the turntable speed to the filling line speed.
Corrosion Resistant Feed and Accumulation Tables
These rotary turntables have a plastic top and sides to help protect the machine from corrosive fumes and products. Corrosion resistant rotary accumulation turntables are available for filling lines that handle acids, bleach, and other corrosive liquids.

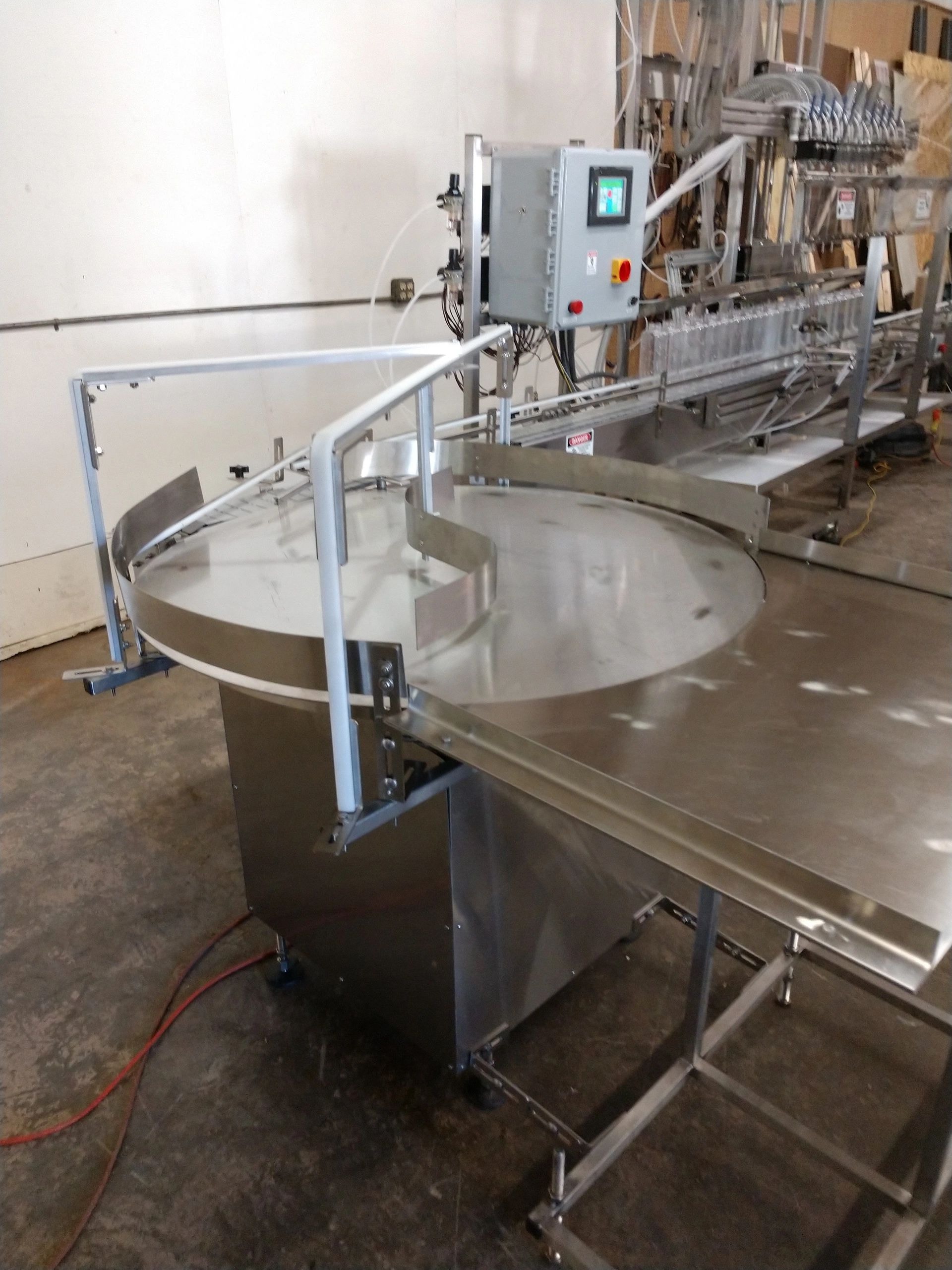

Table Feeding Turntable
This picture shows a stainless table used to feed a feed turntable. The table provides workspace to hold a box or bottles, increasing operator and production efficiency. The system is feeding a bottle filling machine and line.

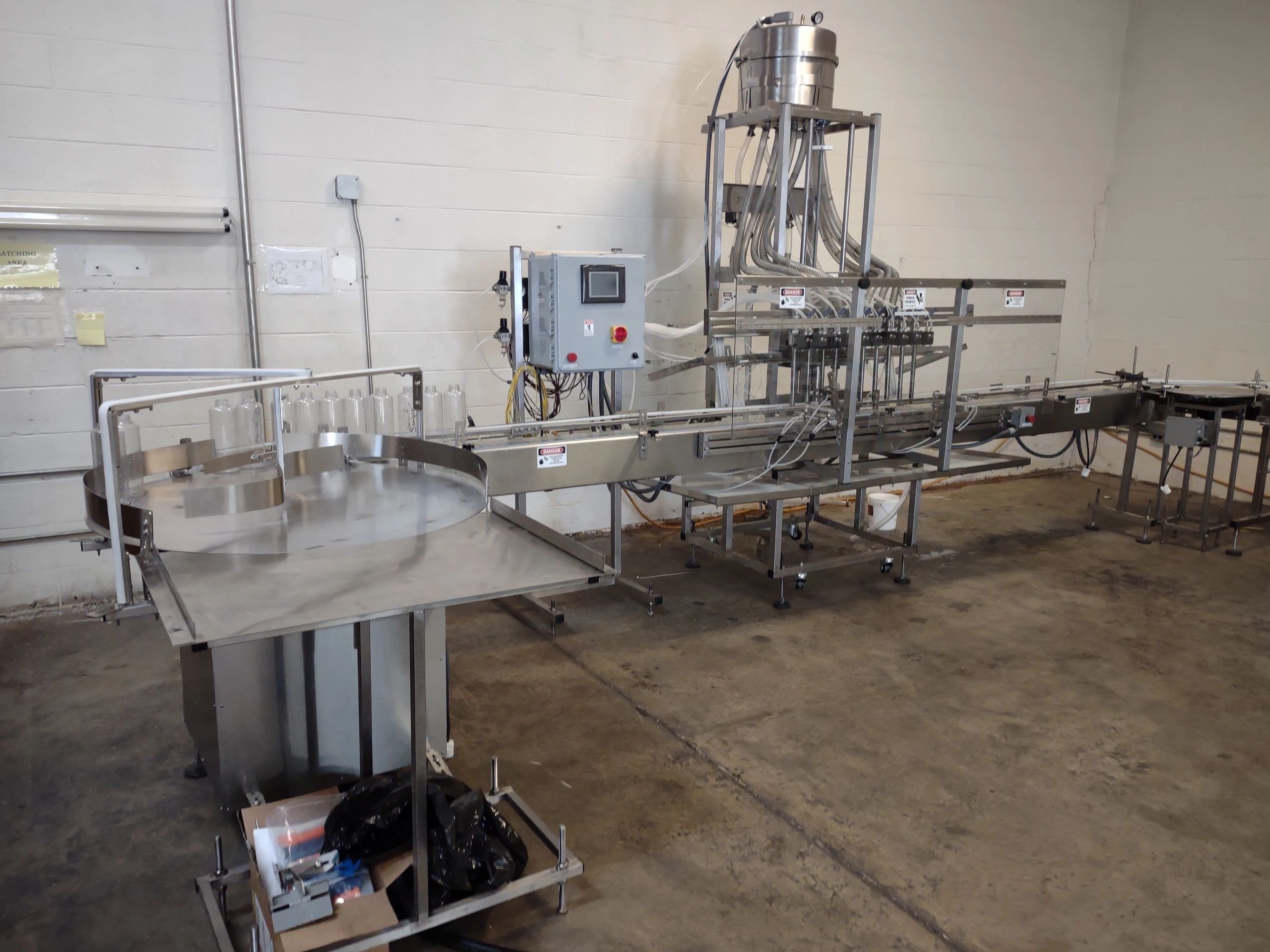

Complete Filling Line Integration
Feed and accumulation turntables are designed to integrate with Neumann Packaging filling machines and conveyors. We can configure a complete filling line with a feed turntable, filling machine, conveyor, and accumulation table to match your production requirements.
Contact us with your bottle size, production speed, and line layout and we will help you select the right turntables and configure a complete line for your application.
Questions About Feed and Accumulation Tables?
Contact us with your bottle size, production speed, and line layout and we will help you select the right turntables for your filling line.
