Acid Filling Machines
Hydrochloric Acid, Bleach, and Corrosive Liquid Fillers
Neumann Packaging builds filling machines specifically designed to handle hydrochloric acid, sodium hypochlorite (bleach), and other corrosive liquids. Machine materials are selected for chemical compatibility and can be modified to fill a wide range of acids and corrosive products.
Semi-Automatic Acid Filling Machine
4-head semi-automatic gravity filling machine for filling round gallon bottles of hydrochloric acid 32%. Machine materials can be modified to fill other acids and corrosive products.
Machine is built with mostly polyethylene, PVC, CPVC, and PVDF. Includes a polyethylene filler tank, PVDF magnetic drive fill pump, float system to fill the filler tank, PVDF fill valves, and Tigon tubing. A slide track assists the operator moving bottles in and out of the fill area.
Controls are on a separate frame next to the filling machine. Individual timer controls with air purge. Machine tested with water before shipment. Price estimated at $22,300 without turntable.
| Heads | 4-head |
| Type | Semi-automatic gravity filler |
| Products | Hydrochloric acid, corrosive liquids |
| Materials | Polyethylene, PVC, CPVC, PVDF |
| Pump | PVDF magnetic drive fill pump |
| Fill valves | PVDF |
| Tubing | Tigon |
| Controls | Individual timer controls with air purge, separate frame |
| Price | $22,300 estimated (without turntable) |

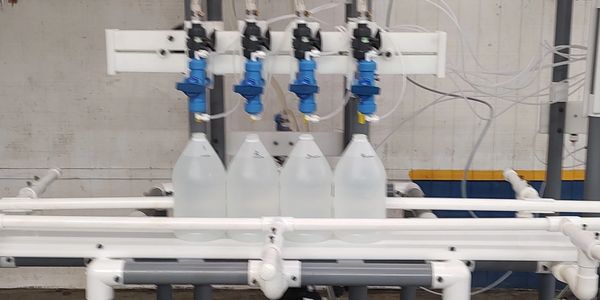

4-head semi-automatic gravity filling machine filling round gallon bottles of hydrochloric acid 32%.
Automatic Bleach and Acid Filling Machines
12-head automatic bleach filling line for sodium hypochlorite. Easy to set up and use. Increase your production speed, total production, and profits with a sodium hypochlorite or corrosive product filling machine.
Automatic acid or bleach filling machines with conveyor and accessories are available at reasonable prices with reasonable delivery times. Contact us to discuss your specific product, container, and production volume requirements.

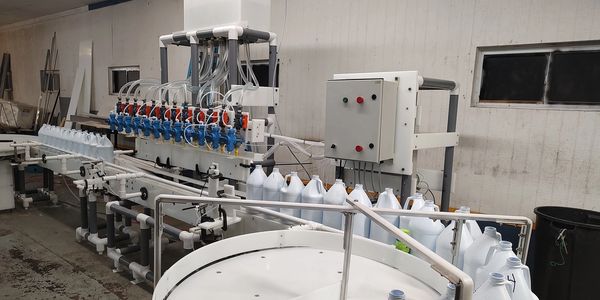

12-head automatic bleach filling line for sodium hypochlorite — easy to set up and use.
Materials and Chemical Compatibility
Filling machines for corrosive products require careful material selection at every product contact point. We build these machines using chemically resistant materials including polyethylene, PVC, CPVC, PVDF, and Tigon tubing — chosen based on the specific acid or corrosive product being filled.
If you are filling a product other than hydrochloric acid or sodium hypochlorite, contact us with your product details. We can advise on the right materials and build a machine configured for your application.
Questions About Acid Filling Machines?
Contact us with your product, container size, and production volume and we will help you find the right filling machine for your application. All machines are tested with water before shipment.
